Mix-PCS Series
Mixed Embroidery Machine, Taping and Plain Embroidery
Features
- Maximum flat embroidery speed: 1200rpm; maximum taping embroidery speed: 900 rpm.
- Independent M shaft, take-up lever adopt automatic separate design
- Cording or tapping embroidery is available
- Ultra-low noise and ultra-low vibration at high operation speed, can meet wear resistance need at 1350rpm speed.
- Service life up to 10+ years

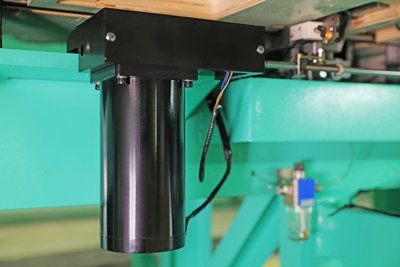

- The semi-static trimming system is equipped with a stepping motor, ensuring a 100% trimming pass rate and an adjustable end thread length.
- The full structure is reinforced with high precision dowel pins, and a head interval and X, Y axis location accuracy of 0.05mm.
Features
- Maximum flat embroidery speed: 1200rpm; maximum taping embroidery speed: 900 rpm.
- Independent M shaft, take-up lever adopt automatic separate design.
- Cording or tapping embroidery is available.
- Ultra-low noise and ultra-low vibration at high operation speed, can meet wear resistance need at 1350rpm speed.
- Service life up to 10+ years.
- The semi-static trimming system is equipped with a stepping motor, ensuring a 100% trimming pass rate and an adjustable end thread length.
- The full structure is reinforced with high precision dowel pins, and a head interval and X, Y axis location accuracy of 0.05mm.
Applications
The MIX-PCS Mix Embroidery machine series is ideal for clothing and home textiles that require multi-element and 3D embroidery.
Details
Specifications
| Model | Needles | Heads | Head interval (mm) | X travel (mm) | Y travel (mm) | L (mm) | W (mm) |
|---|---|---|---|---|---|---|---|
| MIX-PCCS-A902-820-1100-1200 | 9/1/1 | 2/2/2 | 820 | 1100 | 1200 | 4320 | 2950 |
| MIX-PCS-A1513-1000-1400-1600 | 15/1 | 13/13 | 1000 | 1400 | 1600 | 11690 | 3980 |
| MIX-PCS-A923-500-1100-1300 | 9/1 | 23/23 | 500 | 1100 | 1300 | 14800 | 3180 |
Optional
- Multi Sequin Device
- Simple Cording Device
- Seed Beads Device
- Taping Beads Device
- Hot Cutting Device
- Fiber Laser
- Boring Device
- Chenille Heads
- Under Thread Bobbin Changer
Service
Promaker believe that keep focusing on customer needs can help us to improve products quality and service. Therefore, we bring in 4S service concept (service, sales, survey, and standard production).
