Idea-G Mini Commercial Series
Multi Head Embroidery Machine
Features

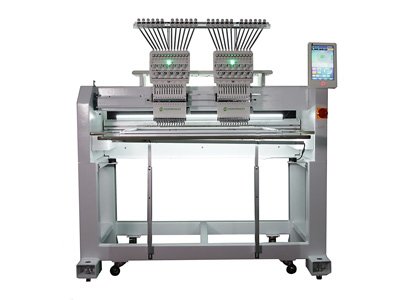

- The idea-g double head embroidery machine features a welded frame, using a modular welding technique to prevent frame deformation.
- Maximum speed of 1200rpm.
- The embroidery heads are equipped with an independent electrical presser foot for high quality embroidering.
- Equipped with a broken thread detection system, the embroidery machine will respond faster and automatically count the remaining thread amount.
- The dynamic thread cutting system leads to more effective and stable work.
Description
Applications
Suitable for clothes, socks, caps, bags and more in small‑quantity embroidery.
Specifications
| Model | Needles | Heads | Head interval (mm) | Embroidery area (mm) | Dimensions (mm) | Power (V) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9 | 12 | 15 | Flats (X×Y) | Caps (X×Y) | L | W | H | ||||
| Idea‑G‑N02 | · | · | · | 2 | 400 | 400×450 | 210×70 | 1900 | 1230 | 1600 | AC90‑250 |
| 500 | 500×450 | 360×70 | 2200 | 1230 | 1600 | ||||||
| Idea‑G‑N04 | · | · | · | 4 | 400 | 400×450 | 210×70 | 2700 | 1230 | 1600 | |
| 500 | 500×450 | 360×70 | 3200 | 1230 | 1600 | ||||||
| Idea‑G‑N06 | · | · | · | 6 | 400 | 400×450 | 210×70 | 3500 | 1230 | 1600 | |
| 500 | 500×450 | 360×70 | 4200 | 1230 | 1600 | ||||||
| Idea‑G‑N08 | · | · | · | 8 | 400 | 400×450 | 210×70 | 4300 | 1230 | 1650 | |
| 500 | 500×450 | 360×70 | 5200 | 1230 | 1650 | ||||||
| Idea‑G‑N10 | · | · | · | 10 | 400 | 400×450 | 210×70 | 5160 | 1230 | 1650 | |
| Idea‑G‑N12 | · | · | · | 12 | 400 | 400×450 | 210×70 | 5960 | 1230 | 1650 | |
Optional Devices
- Sequin device
- Simple cording device
- Seed beads device
- Taping beads device
- Hot cutting device
- Fiber laser device
- Boring device
- Chenille heads
Optional Accessories & Devices
Shoes Devices
8in 1 Frame
Socks Device
Hoops / Frames
90 mm
120 mm
150 mm
180 mm
300×300 mm
360×540 mm
Cap Attachment
Cap Station
Cap Drive
Cap Ring
Multi‑domain Application
T‑shirt
Handbag
Hats
Shoes
Trousers
Socks
Network Technology
Using advanced network technology. Customers can connect all machines to one computer and embroider the same design simultaneously.
