HS Flat Machine Series

Multi-Head Embroidery Machine, Flat Embroidery, 1000rpm

Features

This is an economical industrial embroidery machine with a maximum flat embroidery speed of up to 1000 rpm.
Ultra-low noise and ultra-low vibration at high operation speeds.
Stable and durable, service life of 10+ years
The thread cutting system is equipped with a stepping motor, with a cutting thread success rate of 100% and an adjustable end thread length.
The entire structure is reinforced with high precision dowel pins, ensuring the head interval accuracy and X, Y location detection within 0.05mm.

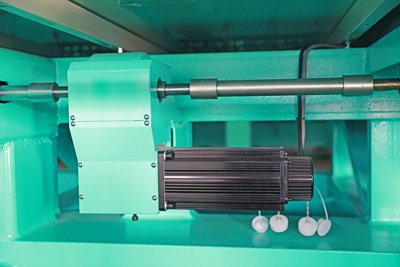

The servo drive embroidery hoop system features a high torque and light weight, ensuring it meets high speed and high-quality embroidery needs.

Description

Features

This is an economical industrial embroidery machine with a maximum flat embroidery speed of up to 1000 rpm.
Ultra‑low noise and ultra‑low vibration at high operation speeds.
Stable and durable, service life of 10+ years.
The thread cutting system is equipped with a stepping motor, with a cutting thread success rate of 100% and an adjustable end thread length.
The entire structure is reinforced with high‑precision dowel pins, ensuring head interval and X/Y accuracy within 0.05 mm.
The servo‑drive embroidery hoop system is high torque, lightweight, and supports high‑speed, quality embroidery.

Applications

The HS multi‑head embroidery machine is suitable for clothing, home textiles, embroidery artwork, and more. Works on thick or thin fabrics.

Details

Specifications

Model	Needles	Heads	Head interval (mm)	X travel (mm)	Y travel (mm)	L (mm)	W (mm)
PHS-A912-300-600-900	9	12	300	600	900	2320	2350
PHS-A455-125-550-1300	4	55	125	550	1300	8950	3180
PHS-A4116-82.5-700-950	4	116	82.5	700	950	12157	2580
PHS-A4132+3-110-900-1600	4	135	110	900	1600	17620	3980

Optional

Multi sequin device
Cording device
Seed beads device
Taping beads device
Hot cutting device
Fiber laser
Boring device
Simple chenille heads
Under thread bobbin changer
