Idea-S Mini Commercial Series

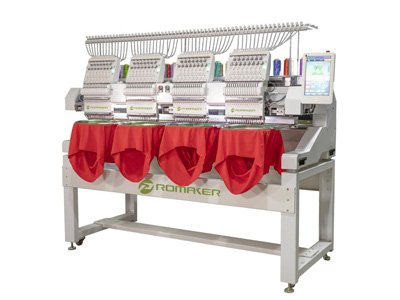

Multi Head Embroidery Machine
Features
- The idea-s multi-head embroidery machine features a structural frame that ensures machine stability. It is also equipped with casters to allow for easy movement around the installation location.
- Maximum speed of 1200rpm.
- The embroidery heads are equipped with an independent electrical presser foot for high quality embroidering.
- Equipped with a magnetic broken thread detection system, the machine responds faster and automatically counts remaining thread.
- The dynamic thread cutting system leads to more effective and stable work
- Models N01, N02 and N03 are equipped with a 270° wide angle cap system, while model N04 is equipped with a 210° wide angle cap system
Description
Applications
Ideal for small‑quantity embroidery on clothes, socks, caps, bags, and similar items.
Specifications
| Model | Needles | Heads | Head Interval (mm) | Embroidery area (mm) | Dimensions (mm) | Power (V) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9 | 12 | 15 | Flats (X×Y) | Caps (X×Y) | L | W | H | ||||
| Idea‑S‑N01 | · | · | · | 1 | – | 500×360 | 360×70 | 830 | 770 | 1500 | AC90‑250 |
| Idea‑S‑N02 | · | · | · | 2 | 605 | 500×360 | 360×70 | 1305 | 770 | 1500 | |
| Idea‑S‑N03 | · | · | · | 3 | 605 | 500×360 | 360×70 | 1910 | 770 | 1600 | |
| Idea‑S‑N04 | · | · | · | 4 | 400 | 400×360 | 210×70 | 1910 | 770 | 1500 | |
Optional Devices
- Sequin device
- Simple cording device
- Seed‑beads device
- Taping beads device
- Hot cutting device
- Fiber laser
- Boring device
- Chenille heads
Optional Accessories & Devices
Shoes Devices
8in 1 Frame
Socks Device
Hoops / Frames
90 mm
120 mm
150 mm
180 mm
300×300 mm
360×540 mm
Cap Attachment
Cap Station
Cap Drive
Cap Ring
Multi‑domain Application
T‑shirt
Handbag
Hats
Shoes
Trousers
Socks
Network Technology
Using advanced network technology. Customers can connect all machines to one computer and embroider the same design simultaneously.
