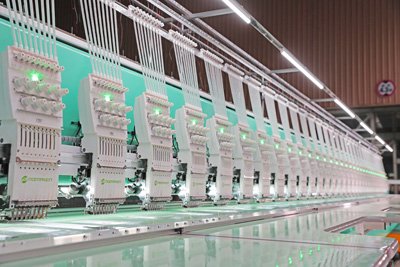

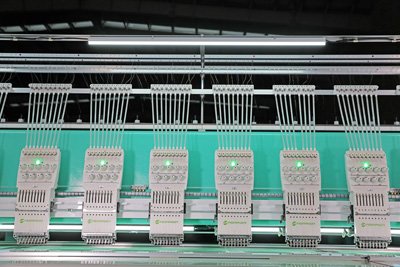

HE Flat Machine Series

Multi-Head Embroidery Machine, Flat Embroidery, 1000rpm

Features

Maximum flat embroidery speed of 1000rpm.
Ultra-low noise and ultra-low vibration during high speed operation.
Service life up to 10+ years.
The semi-static trimming system is equipped with a stepping motor for a 100% trimming pass rate and an adjustable end thread length.
The entire structure is reinforced with high precision dowel pins, while the head interval and X and Y axis location detection accuracy is 0.05mm.

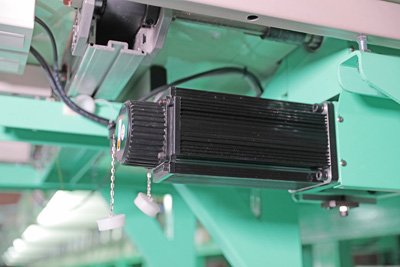

The servo drive embroidery hoop system features a high torque and light weight, meeting the needs for high speed and exceptional quality embroidery needs.

Description

Features

Maximum flat embroidery speed of 1000rpm.
Ultra‑low noise and vibration at high speed.
Service life up to 10+ years.
Semi‑static trimming with stepping motor for 100% pass rate and adjustable length.
Reinforced structure with high‑precision dowel pins. X/Y accuracy within 0.05 mm.
Servo‑driven hoop system: light, high torque, high speed.

Applications

This machine is ideal for clothing, home textiles, embroidery artwork, and fabrics (thick or thin)—a cost‑effective choice for your business.

Details

Specifications

Model	Needles	Heads	Head interval (mm)	X travel (mm)	Y travel (mm)	L (mm)	W (mm)
HE‑A912/300‑600‑900	9	12	300	600	900	5320	2350
HE‑A918/300‑600‑900	9	18	300	600	900	7060	2350
HE‑A924/400‑800‑900	9	24	400	800	900	11760	2350
HE‑A1515‑900‑1000‑1350	9	30	300	600	900	11100	2350

Optional

Multi sequin device
Cording device
Seed beads device
Taping beads device
Hot cutting device
Fiber laser
Boring device

Service

Promaker believe that keep focusing on customer needs can help us to improve product quality and service. Therefore, we bring in 4S service concept (service, sales, survey and standard production).
